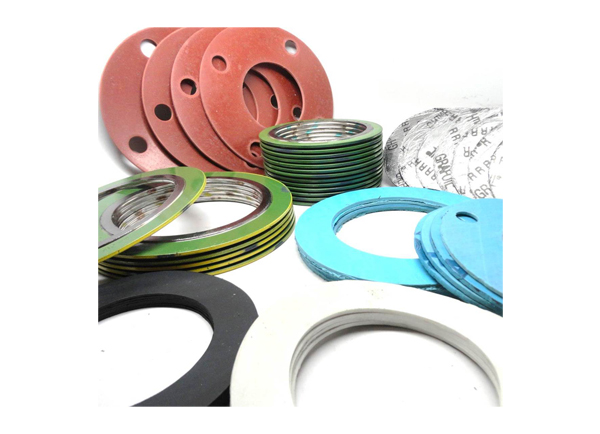

Gaskets
Some of our customers require gaskets, and because we have a strong connection with top quality manufacturer who have best prices in gasket market, thus we can offer them to you. We provide and innovation and flexible approached, which are tailor made as per our customers gasket requirements.
The following gaskets can be provided:
- Non-Asbestos gaskets
- Boiler gasket 7 seals
- Rubber gaskets
- Flange gaskets
- Nitrile gaskets
- PTFE gasket
- Spiral wound gaskets
- Ceramic gaskets
- Double jacketed gasket
Compressed Asbestos fibre gasket
These gaskets are the choice of our customers, they are soft gaskets. They are easy to use and very tolerant of abuse. These gaskets are used in application of water, steam, chemical high service conditions, oil industry and highly corrosive industries.
OUTSIDE DIAMETER |
||||||
Nominal Pipe Size |
Inside Diameter(mm) |
Class 150(mm) |
Class 300(mm) |
Class 400(mm) |
Class 600(mm) |
Class 900(mm) |
| 1/2 | 21.4 | 47.6 | 54 | 54.0 | 54.0 | 63.5 |
| 3/4 | 27.0 | 57.2 | 66.7 | 66.7 | 66.7 | 69.9 |
| 1 | 33.3 | 66.7 | 73.0 | 73.0 | 73.0 | 79.4 |
| 1 1/4 | 42.1 | 76.2 | 82.6 | 82.6 | 82.6 | 88.9 |
| 1 1/2 | 48.4 | 85.7 | 95.3 | 95.3 | 95.3 | 98.0 |
| 2 | 60.3 | 104.8 | 111.1 | 111.1 | 111.1 | 142.0 |
| 2 1/2 | 73.0 | 123.8 | 130.2 | 130.2 | 130.2 | 165 |
| 3 | 88.9 | 136.5 | 149.2 | 149.2 | 149.2 | 168 |
| 3 1/2 | 101.6 | 161.9 | 165.1 | 161.9 | 161.9 | - |
| 4 | 114.3 | 174.6 | 181.0 | 177.8 | 193.7 | 206 |
Above are few ready cut gaskets.
NON- Asbestos gaskets
These gaskets replace asbestos gaskets. These products are available in many varieties of different grades and thickness. They are mainly used for air compressors, diesel engine pipelines and most other industrial and marine applications
PTFE Gasket
Polytetra Fluoroethylene gaskets are mainly used in environments in which the gasket material is exposed to aggressive chemical, such as acids and basis solvents. We provide our customers gaskets, according to their specs.
Graphite gaskets
These gaskets are made using high quality materials; they are available with steel or nickel reinforcement layers, soft graphite either plain or tanged. These gaskets are used in most extreme condition. They are self lubricated and do not tick to flanges.
