Steel: A Brief History and Industrialization ancient steelmaking

Steel is an Alloy of Iron and Carbon that has been used for centuries in various applications, from construction to daily use appliances. The earliest known production of steel dates back to around 1800 BC in Anatolia (modern-day Turkey), where ancient craftsmen discovered that adding carbon to iron could trade a much stronger and more durable material. Sections like stainless steel flats UAE, stainless steel wire rods, stainless steel round bars, stainless steel hex bars and stainless steel angles Saudi Arabia which are so easily available now days was not available back then. Industrialization of such stainless-steel sections hadn't still occurred.

However, it wasn't until the 17th century that steel production began to be industrialized. In 1856, Henry Bessemer, an English inventor, revolutionized the steel industry with the invention of the Bessemer process, a method for mass-producing steel inexpensively. This process involved blowing air through molten iron to remove impurities and control the carbon content, resulting in high-quality steel at a fraction of the previous cost. Manufacturing and supplying steel flats, stainless steel wire rods, stainless steel round bars, stainless steel hex bars and stainless-steel angles thus took birth and shaped the modern world we live in today.

Bessemer's invention quickly spread throughout Europe and the United States, leading to a massive increase in steel production and the rise of the steel industry as a major player in the global economy. The demand for stainless steel soared as it became the preferred material for railway tracks, bridges, buildings, and machinery. You just cannot ignore its Presence.

Products in Stainless Steel in UAE, Saudi Arabia, Oman, Europe & Africa

• 1. Wire Rods Coils

  Stainless steel wire rods in coil form are commonly used in various applications such as construction, automotive, aerospace, marine, and manufacturing industries. They are used for making wire ropes, springs, fasteners, welding electrodes, and various other components where high strength, corrosion resistance, and durability are required. Additionally, they are also used in the production of kitchenware, medical instruments, and electronic components.

  Size	Range	Coil Weight	Coil Dimensions	Tolerance	Supply Condition
  Wire Rod	5.5 – 16 mm (Wire rod block) OD: 1250 (Available in mm) 5.5, 6, 6.5, 7, 7.5, 8, 9, 10, 11, 12, 13, 14,15, and 16. 17 – 40 mm(garret coiled)	850 – 1200 kg 50 kg	ID: 800 – 900 mm ID: 550 – 650 mm OD: 750 – 850 mm	As per EN 10088	Hot rolled (HR) Hot rolled + pickled (HRP) Hot rolled + annealed + pickled (HRAP) Hot rolled + annealed (HRA)

  Grades

  ASTM	DIN/EN	Electrode Grades
  201, 202, 204Cu, 301, 302, 303, 304, 304Cu, 304HC, 304L, 304H, 310, 310S, 312, 314, 316, d16L, 316LN, 316Ti, 316LCu, 321, 410, 420, 430, 430L, 904L	1.4301, 1.4306, 1.4307, 1.4310, 1.4401, 1.4404, 1.4567, 1.4841, 1.4842, 1.4541, 1.4845, 1.4570, 1.4571, 1.4578, 1.4597, 1.4362, 1.4370 and 1.4016	ER304, ER304L, ER307, ER307SI, ER308, ER308L, ER308LSi, ER310, ER316, ER316L, ER316LSi, ER347, ER347SI, ER309L, ER430 and ER420

  *Specialised grades also available as per customer requirements

  Packaging

  Simple 4 – Steel strip packaging for coil, wrapping with plastic strip, poly packing with plastic strip for HRP and HRAP, and as per customer.



• 2. Hexagonal Bar

  We trade high quality stainless steel hexagonal bars in stainless steel grades 201, 304/304L, 316/316L and 303. We manufacture corrosion resistance quality of stainless steel hexagonal bars which make them suitable for various application. Our stainless steel bright hex bar is flexible to use in different manufacturing application due to its high strength and corrosion resistance durability. Our stainless steel hex bar is used in the manufacturing of nuts, valves, hose ends, fasteners and hex bolts.

  Size range	12mm to 55mm (1/2" to 2-1/4")
  Size Tolerance	h11
  Length	Minimum 3.00 meters to 6.70 meters or 10 feet to 22 feet
  Length Tolerance	Available in special cut to length bars in tolerance -0/+50 mm (-0/+2 inch)
  Chamfering	Available in 30° , 45° & 60° . Plain cut ends free from burrs.
  Straightness	1mm/meter
  Surface Finish	Shot Blasted & Cold Drawn or Belt Polish
  Heat Treatment	Solution Annealed



• 3. Square Bars

  We produce stainless steel square bars in Austenitic grades. Our stainless steel square bars are used for some very high end applications like aerospace, pressure gauges, temperature sensors, load cells etc. We ensure the accuracy of across flat and corner radius can be maintained as per customer's requirements. We produce Square bars by two ways depends on the application like drawn and polished square bars used for decorative application and shot blasted and cold drawn for critical applications.



  Size range	12mm to 55mm (1/2" to 2-1/4")
  Size Tolerance	h11
  Length	Minimum 3.00 meters to 6.70 meters or 10 feet to 22 feet
  Length Tolerance	Available in special cut to length bars in tolerance -0/+50 mm (-0/+2 inch)
  Chamfering	Available in 30° , 45° & 60° . Plain cut ends free from burrs.
  Straightness	1mm/meter
  Surface Finish	Shot Blasted & Cold Drawn or Belt Polish
  Heat Treatment	Solution Annealed

• 4. Hrap Flat Bars

  We produce HRAP (True Mill Bars) Flat Bars as we are a fully integrated mill. We have a full quality control as the entire process is inhouse and each step monitored carefully. Our flat bars are of high strength as compared to slitted flat bars. It is used in construction and for high strength applications. We produce flat bars by two ways HRAP and shot blasted and HRAP and belt polish for decorative applications.



  Size Tolerance	ASTM A484
  Length	Minimum 3.00 meters to 6.70 meters or 10 feet to 22 feet
  Length Tolerance	Available in special cut to length bars in tolerance -0/+50 mm (-0/+2 inch)
  Straightness	1mm/meter
  Surface Finish	Hot Rolled Annealed Pickled & Shot Blasted
  Heat Treatment	Solution Annealed

  SIZE	THICKNESS
  25 MM (1")	5 mm to 12 mm (1/8" - 1/2")
  30 MM (1 -3/16")	5 mm to 12 mm (1/8" - 1/2")
  32 MM (1-1/4")	5 mm to 12 mm (1/8" - 1/2")
  35 MM (1-3/8")	5 mm to 12 mm (1/8" - 1/2")
  40 MM ( 1-4/7")	5 mm to 25 mm (1/8" - 1")
  45 MM (1-7/9")	5 mm to 25 mm (1/8" - 1")
  50 MM (2")	5 mm to 30 mm (1/8" - 1-3/16")
  55 MM (2-1/16")	5 mm to 30 mm (1/8" - 1-3/16")
  60 MM ( 2-3/8")	5 mm to 30 mm (1/8" - 1-3/16")
  65 MM ( 2-5/9")	5 mm to 30 mm (1/8" - 1-3/16")
  70 MM (2-3/4")	5 mm to 30 mm (1/8" - 1-3/16")
  75 MM (3")	5 mm to 50 mm (1/8" - 2")
  80 MM ( 3-1/8")	5 mm to 30 mm (1/8" - 1-3/16")
  90 MM (3-1/2"	5 mm to 30 mm (1/8" - 1-3/16")
  100 MM (4")	5 mm to 50 mm (1/8" - 2")

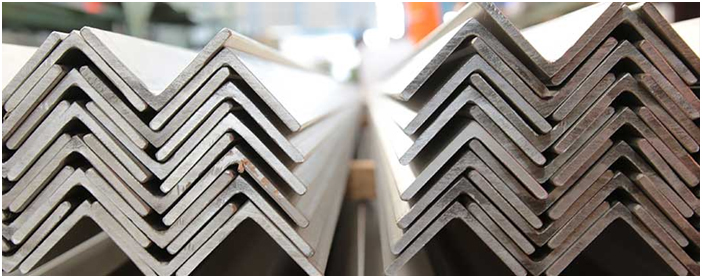

• 5. Harp Angels

  We produce high strength stainless steel HRAP Angles. Due to its high strength our angles are widely used in construction and structurals.



  Size Tolerance	ASTM A484
  Length	Minimum 3.00 meters to 6.70 meters or 10 feet to 22 feet
  Length Tolerance	Available in special cut to length bars in tolerance -0/+50 mm (-0/+2 inch)
  Straightness	1mm/meter
  Surface Finish	Hot Rolled Annealed Pickled & Shot Blasted
  Heat Treatment	Solution Annealed

  SIZE	THICKNESS
  20X20	( 4/5" X 4/5") 3 (1/8")
  25X25 (1" X 1")	3, 4, 5, 6 (1/8", 1/6", 3/16" , 1/4")
  30X30 ( 1-1/6"X1-1/6")	3, 4, 5 (1/8", 1/6", 3/16")
  32X32 (1-1/4"X1-1/4")	3, 4, 5, 6 (1/8", 1/6", 3/16", 1/4")
  35X35(1-3/8"X1-3/8")	3, 4, 5 (1/8", 1/6", 3/16")
  38.1X38.1(1-1/2"X1-1/2")	3.17, 4.76, 6.35 (1/8", 3/16", 1/4")
  40X40(1-4/7"X1-4/7")	3, 4, 5, 6 (1/8", 1/6", 3/16", 1/4")
  45X45(1-7/9"X1-7/9")	3, 4, 5, 6 (1/8", 1/6", 3/16", 1/4")
  50X50(2"X2")	3, 4 , 5, 6,9.52 (1/8", 1/6", 3/16", 1/4",3/8")
  60 X 60 (2-3/8" X 2-3/8")	5, 6,7,8 (3/16", 1/4")
  63 X 63 (2-1/2" X 2-1/2")	5, 6,9.52 (3/16", 1/4",3/8")
  65 X 65 (2-5/9" X 2-5/9")	5, 6,7,8 (3/16", 1/4")
  70 X 70 (2-3/4" X 2-3/4")	6, 7, 8, 9, 10 (1/4", 9/32", 5/16", 3/8",2/5")
  75 X 75 (3" X3")	6,7,8,9,10,12 (1/4",9/32",5/16",3/8",2/5",1/2")

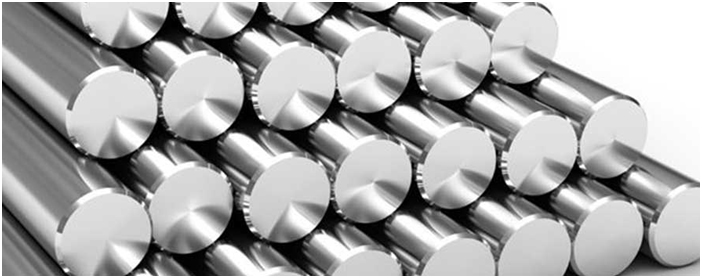

• 6. PSQ Bars

  Avtar produces high quality pump shaft quality bars having tighter tolerance and better straightness than regular round bright bars. These precision shaft bars can be directly used as a pump shaft, cylinder shaft, piston shaft etc.



  Size Range	6mm to 63.50mm (1/4" to 2-1/2")
  Size Tolerances	h8
  Length	Minimum 3.00 meters to 6.70 meters or 10 feet to 22 feet
  Length Tolerance	Available in special cut to length bars in tolerance -0/+50 mm (-0/+2 inch)
  Chamfering	Available in 30° , 45° & 60°
  Straightness	Up to 0.25 mm/metre TIR (0.0015 inch/feet)
  Surface Finish	Centreless Ground & Belt Polished up to Ra value 0.2 microns and 240 – 320 Grit Polished
  Heat Treatment	Solution Annealed, Annealed, QT 650, QT 800 etc.

• 7. Hot Rolled Bars

  We produce a wide range of hot rolled bars. Our hot rolled bars are used by processors and in forgings. We supply rolled bars in straightened condition.



  Sizes in mm	13, 14, 16, 17, 18, 18.50, 20, 20.50, 22, 22.50, 23, 24, 25, 26, 28, 30, 32, 33.50, 34, 36, 37.50, 40, 42, 45, 47, 50, 53, 56, 58, 60, 63, 65, 68, 70, 73, 75, 78, 80, 83, 85, 90, 100, 105, 118, 130, 140, 150.
  Tolerance	EN10060
  Length	Minimum 3.00 metres to 6.70 metres or 10 feet to 22 feet
  Straightness	1mm/meter
  Surface Finish	As Rolled Black Condition
  Heat Treatment	Annealed, Solution Annealed, Quenched & Tempered

It is everywhere
The industrialization of steel also paved the way for the development of new technologies and innovations, such as the production of steel in electric arc furnaces and the introduction of alloy steels with enhanced properties. This allowed for the creation of stronger, lighter, and more versatile steel products, further expanding its uses in various industries. Stainless Steel Wire Rods was used in making products like Refractory Anchors and Wire Ropes used in cranes and holding of concrete bridges. Stainless Steel Angles, Stainless Steel Flats, Stainless Steel Sheets, Stainless Steel Bright Bars UAE and many more sections of stainless steel began being used in construction, transport and even robust fields which involve precision engineering like Aeronautics and Robotics.

In Addition to Its Mechanical Properties,
Steel's versatility and durability have made it a staple material in modern society. From automobiles to appliances, from surgical instruments to skyscrapers, steel is an essential component in countless products and structures.

Today, Steel Continues To Be A Vital Material In The Construction, Manufacturing, And Transportation Industries, With Global Production Exceeding 1.8 Billion Tons Annually (2023). Its importance in modern society cannot be overstated, and the industrialization of steel has played a significant role in shaping the world as we know it.

It is our duty at Santura Engineering as suppliersand exporters of Stainless Steel Wire Rods Saudi Arabia, Hex Bars, Round Bars, Flats, Sheets and Angels that we bring you the best material in the market, are the lowest but reasonable price and within the time frame that is acceptable to our clients (provided the time assigned it is possible).

To summarize, Stainless Steel Sections like Wire Rods, Bright Bars, Hex Bars, Flats, Sheets and Angles in UAE & Saudi Arabia

They are used in a variety of applications around the globe. Manufacturing of machinery, equipment and components that are used across industries like Automobiles, Aeronautics, Construction of buildings and superstructures like bridges and roads and in the marine sector where ports and ships are constructed, all use Steel Sections in some form or the other. Even the ropes used in gigantic cranes that help lift heavy equipment are made from stainless steel. Wires in particular are used for this purpose.

Bright Bars and Hex Bars are especially seen on a daily basis as they are used for producing fasteners, shafts, precisions components and nuts, bolts and valves, respectively. It is because of rivets made from Stainless Steel Wire Rods that an aeroplane can be put together and held in place while facing intense pressure during take-off, landing and flight at high altitudes. Stainless Steel Flats and Stainless-Steel Sheets on the other hand are used in architecture, decorative structures as well as kitchen equipment and appliances. The outer body of your car is made from none other than Stainless Steel Sheets UAE like DP and TRIP steel. The components used inside the cars and trucks that need to resist high temperatures are made from none other that stainless steel sections in the 300 and 400 series. These can take temperatures of up to 800 degrees Celsius. Stainless Steel Angles are used in structural applications, such as in the construction of frames, furniture, food processing equipment and machinery.
