Split Y refractory anchors for concrete linings.
The "Y" refractory anchors are the most common anchoring systems which are widely used due to its low cost and availability. These anchors are used from light to dense refractories. They are suitable for Stud/gun welding which decrease a lot of time in installation. Widths greater than 16mm have reduced base.
Y refractory anchors are usually corrugated to have a higher hold on the refractory. Different types of corrugation can be formed into these anchors. Below you can see the examples of these types of anchors.
Available alloys for plate: CS, 304, 309, 253MA, 310SS, 314, 321, 330, 800, 601 and more. For other alloys please contact us.

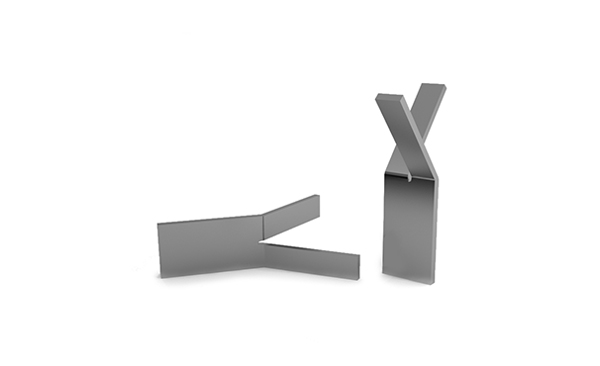

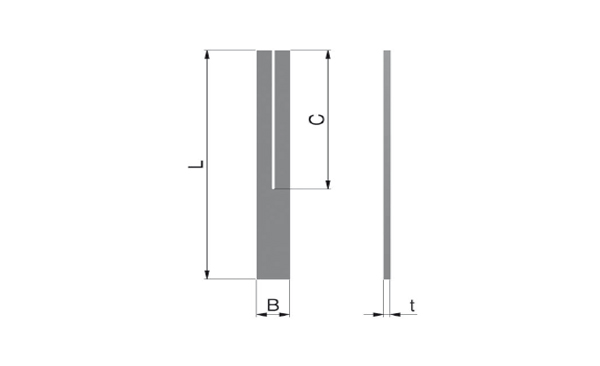

Split Y anchor

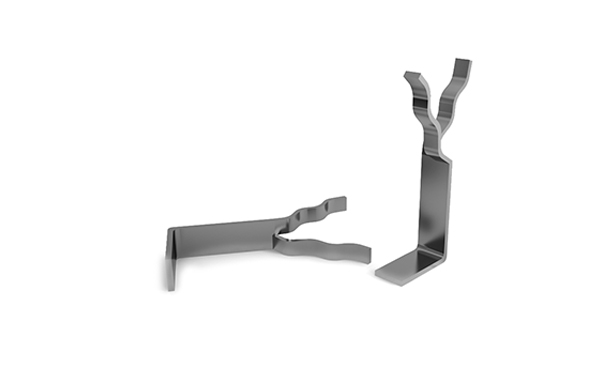

Split Y corrugated L anchor

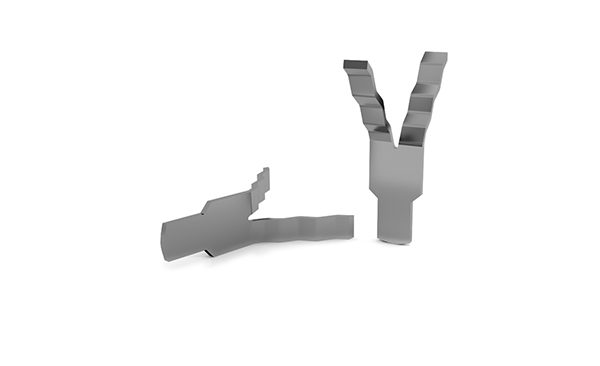

Splitted YH corrugated anchors

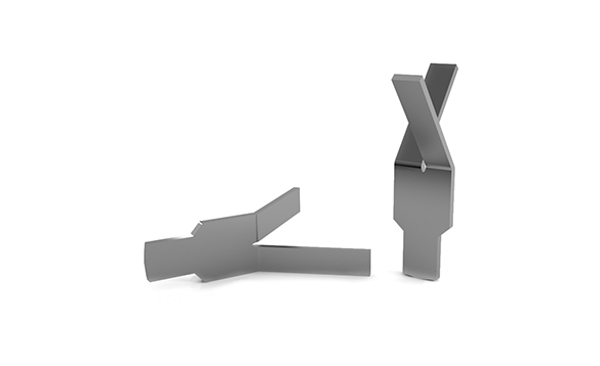

Splitted YH anchors

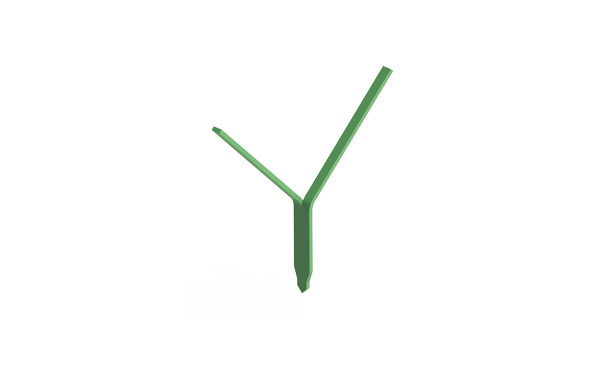

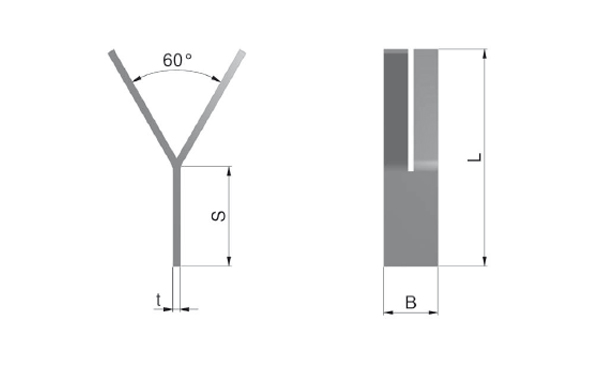

Splitted Y anchor

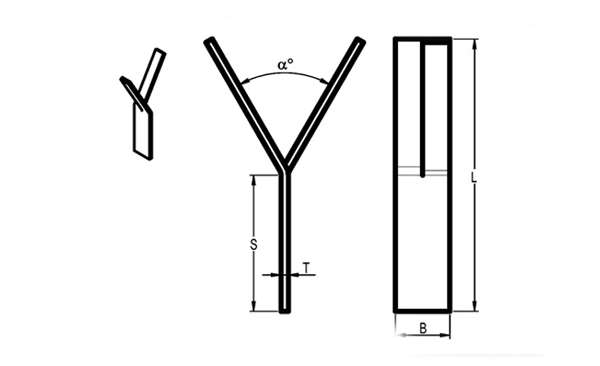

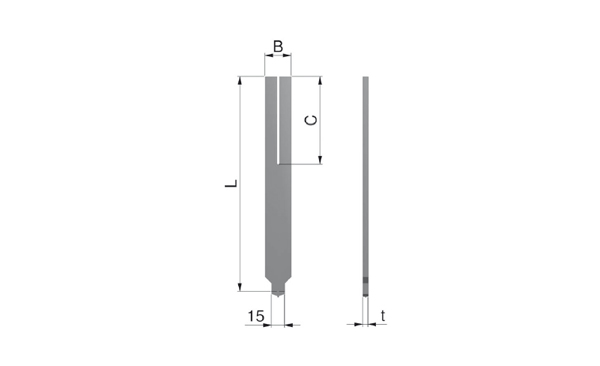

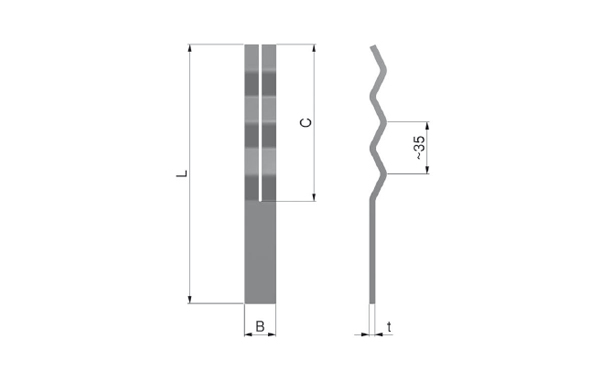

Drawings
Drawings
Drawings
Drawings
Drawings
Drawings
